Get Started with PHP using Laravel Framework

    Start by signing up for a free trial account that you can use to experiment with and learn about our services. The free trial account comes with free credits, and you can add more as you go along. You can also add a phone number to your account to start testing the full range of our voice and SMS features. A page in our support portal walks you through the signup process.

    You can start making and receiving calls either by using our PHLO visual workflow builder or our APIs and XML documents. Follow the instructions in one of the tabs below.

    Make Your First Outbound Call

    To make your first outbound call, you can create and deploy a PHLO in just a few clicks using the PHLO canvas. PHLO also lets you visually construct your entire use-case. With PHLO, only pay for calls you make/receive. Building with PHLO is free.

    Prerequisites

    1. Create a Plivo account (if you don’t have one already): Sign up with your work email address and complete the phone verification step using your mobile number.
    2. Set Up Your PHP Laravel Dev environment: To set up your dev environment in PHP Laravel, please refer to the instructions available in the Set Up Your PHP Laravel Dev Environment section.
    3. Buy a Plivo Number(optional): You must have a voice-enabled Plivo phone number if you wish to receive incoming calls. Purchase numbers from the Numbers section of your Plivo Console. It is also possible to purchase numbers using the Numbers API.

    Create the PHLO

    Create a PHLO to make your first outbound call by following these instructions:

    Create a PHLO for outbound calls

    • On the side navigation bar, click PHLO. The PHLO page will appear and display your existing PHLOs, if any exist. If this is your first PHLO, then the PHLO page will be empty.
    • Click Create New PHLO to build a new PHLO.
    • In the Choose your use-case window, click Build my own. The PHLO canvas will appear with the Start node.
      Note: The Start node is the starting point of any PHLO. You can choose between the four available trigger states of the start node; Incoming SMS, Incoming Call, and API Request. For this PHLO, we will use the API Request trigger state.
    • From the list of components on the left-hand side, drag and drop the Initiate Call component onto the canvas. This will add an Initial Call node onto the canvas.
    • Connect the Start node with the Initiate Call node, using the API Request trigger state.
    • Configure the Initiate Call node with the caller ID using the From field. Enter the destination number you wish to call in the To field.
    • Once you have configured the node, click Validate to save the configurations.
    • Similarly, create a node for the Play Audio component and connect it to the Initiate Call node using the Answered trigger state.
    • Next, configure the Play Audio node to play a specific message to the user. For example, “Hello! You just received your first inbound call”.
    • Connect the Initiate Call node with the Play Audio node, using the Answered trigger state.
    • After you complete the configurations, provide a recognizable name for your PHLO and click Save. Your PHLO is now ready. You can trigger the PHLO and test it out. For more information, refer to the following section.

    Set Up Your PHP Laravel Dev Environment

    You must set up and install PHP, Laravel and Plivo’s PHP SDK to make your first call. Here’s how.

    Install PHP

    Operating SystemInstructions
    macOSYou can install PHP using the official installer. You can also install it from here.
    LinuxTo install PHP on Linux you can find the instructions here.
    WindowsTo install PHP on Windows you can use the official installer.

    Install Composer

    Composer is a dependency manager for PHP that is used in all modern PHP frameworks, such as Symfony and Laravel. We highly recommend using Composer as the package manager for your web project.

    1. Download the latest version of Composer.
    2. Run the following command in Terminal in order to run the composer:

       $ php ~/Downloads/composer.phar --version


      Note: PHAR (PHP archive) is an archive format for PHP that can be run on the command line

    3. Run the following command to make it executable:

       $ cp ~/Downloads/composer.phar /usr/local/bin/composer
       $ sudo chmod +x /usr/local/bin/composer
       $ Make sure you move the file to bin directory.

    4. To check if the path has /usr/local/bin, use

       $ echo $PATH


      If the path is different, use the following command to update the $PATH:

       $ export PATH = $PATH:/usr/local/bin
       $ source ~/.bash_profile


      Note: If your PATH doesn’t include /usr/local/bin directory, we recommend adding it so that you can access it globally.

    5. You can also check the version of Composer by running the following command:

       $ composer --version.


    1. Run the following command:

       $ curl -sS https://getcomposer.org/installer | php

    2. Run the following command to make the composer.phar file as executable:

       $ chmod +x composer.phar


      Note: PHAR (PHP archive) is an archive format for PHP that can be run on the command line

    3. Run the following command to make Composer globally available for all system users:

       $ mv composer.phar /usr/local/bin/composer


    1. Download and run the Windows Installer for Composer.

      Note: Make sure to allow Windows Installer for Composer to make changes to your php.ini file.

    2. If you have any terminal windows open, close all instances and open a fresh terminal instance.
    3. Run the Composer command.

       $ composer -V


    Install Laravel & Create a Laravel Project

    • Use the below command to install Laravel:

      $ composer require laravel/installer


    As we have Laravel and its dependencies installed, we can use them to create a new Laravel project. As the initial step, using Laravel we can auto-generate code in the Laravel folder structure.

    • Change the directory to our project directory in the command line:

      $ cd mylaravelapp

    • Use the below command to start your Laravel project:

      $ composer create-project laravel/laravel quickstart --prefer-dist

    • To install the stable release, run the following command in the project directory:

      $ composer require plivo/plivo-php


    This will create a quickstart directory with the necessary folders & files for development.

    Install Plivo

    • To install a specific release, run the following command in the project directory:

      $ composer require plivo/plivo-php:4.15.0

    • Alternatively, you can download this source and run

      $ composer install


    This generates the autoload files, which you can include using the following line in your PHP source code to start using the SDK.

    <?php
    require 'vendor/autoload.php'


    Trigger the PHLO

    Once you have created and setup your PHP dev envrironment, you can go to your Plivo Consolse and copy the PHLO_ID. Integrate a PHLO into your application workflow by making an API request to trigger the PHLO with the required payload.

    Create a Laravel Controller

    Change the directory to our newly created project directory, i.e, quickstart directory and run the below command to create a Laravel controller for outbound call.

    $ php artisan make:controller PhloController


    This will generate a controller named PhloController in the app/http/controllers/ directory.

    With Static Payload

    You can choose to either configure the mandatory params required for a PHLO while creating the PHLO itself or, you can pass the params as payload while triggering the PHLO from your app.

    Note: When you configure the params while creating the PHLO, the values are hardcoded and act as static payload.

    With Static Payload

    Code

    Now, You have to open the app/http/controllers/phloController.php file and add the following code:

    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20

    <?php
    namespace App\Http\Controllers;
    require '../../vendor/autoload.php';
    use Plivo\Resources\PHLO\PhloRestClient;
    use Plivo\Exceptions\PlivoRestException;

    class PhloController extends Controller
    {
        public function triggerPhlo()
        {
            $client = new PhloRestClient("YOUR_AUTH_ID", "YOUR_AUTH_TOKEN");
            $phlo = $client->phlo->get("YOUR_PHLO_ID");
            try {
                $response = $phlo->run();
                echo json_encode($response);
            } catch (PlivoRestException $ex) {
                echo json_encode($ex);
            }
        }
    }


    With Dynamic Payload

    To use dynamic values for the parameters, use the liquid templating params while creating the PHLO and pass the values while triggering the PHLO.

    With Dynamic Payload

    Code

    Now, You have to open the app/http/controllers/phloController.php file and add the following code:

    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20

    <?php
    namespace App\Http\Controllers;
    require '../../vendor/autoload.php';
    use Plivo\Resources\PHLO\PhloRestClient;
    use Plivo\Exceptions\PlivoRestException;

    class PhloController extends Controller
    {
        public function triggerPhlo()
        {
            $client = new PhloRestClient("YOUR_AUTH_ID", "YOUR_AUTH_TOKEN");
            $phlo = $client->phlo->get("YOUR_PHLO_ID");
            try {
                $response = $phlo->run(["from" => "+14157778888", "to" => "+14157778889"]); // These are the fields entered in the PHLO console
                echo json_encode($response);
            } catch (PlivoRestException $ex) {
                echo json_encode($ex);
            }
        }
    }


    Get your Auth_ID and Auth_token from your dashboard AUTHID

    You can find the PHLO_ID on the PHLO Listing page. PHLO Listing

    Test and Validate

    Add a Route

    Now, to add a route for the outbound function in the PhloController class, open the routes/web.php file and add the below line at the end of the file:

    Route::match(['get', 'post'], '/triggerphlo', 'PhloController@triggerPhlo');

    Note: If you are using Laravel 8 then you need to use the fully qualified Class name for your Controllers. For example:
    Route::match(['get', 'post'], '/triggerphlo', 'App\Http\Controllers\PhloController@triggerPhlo');

    Save the file and use the below command to run your code.

    $ php artisan serve


    Your local development server will be started and you can test the laravel app for outbound calls via the URL http://127.0.0.1:8000/triggerphlo/.

    Note: If you are using a Plivo Trial account for this example, you can only make calls to phone numbers that have been verified with Plivo. Phone numbers can be verified at the Sandbox Numbers page.

    Receive Your First Inbound call

    Create and deploy a PHLO to receive your first inbound call with a few clicks on the PHLO canvas. PHLO also lets you visually construct your entire use-case. With PHLO, only pay for calls you make/receive. Building with PHLO is free.

    Prerequisites

    1. Create a Plivo account (if you don’t have one already): Sign up with your work email address and complete the phone verification step using your mobile number.
    2. Buy a Plivo number: You must have a voice-enabled Plivo phone number to receive incoming calls. Purchase numbers from the Numbers section of your Plivo Console. It is also possible to purchase numbers using the Numbers API.
    3. PHLO Application: When you receive a call on a Plivo voice-enabled number, you can control the call flow by associating a PHLO application to that Plivo phone number. Plivo will fetch the PHLO associated with the number and expect valid instructions via PHLO to handle the call.

    Create the PHLO

    You can create a PHLO by referring to the below instructions to receive your first incoming call:

    Create a PHLO to receive incoming call

    • On the side navigation bar, click PHLO. The PHLO page will appear and display your existing PHLOs, if any exist. If this is your first PHLO, then the PHLO page will be empty.
    • Click Create New PHLO to build a new PHLO.
    • In the Choose your use-case window, click Build my own. The PHLO canvas will appear with the Start node.
      Note: The Start node is the starting point of any PHLO. You can choose between the four available trigger states of the start node; Incoming SMS, Incoming Call, and API Request. For this PHLO, we will use the API Request trigger state.
    • From the list of components on the left-hand side, drag and drop the Play Audio component onto the canvas. This will add a Play Audio node onto the canvas.
    • Connect the Start node with the Play Audio node, using the Incoming Call trigger state.
    • Configure the Play Audio node to play a specific message to the user. For example, “Hello! You just received your first inbound call”.
    • Once you have configured the node, click Validate to save the configurations.
    • After you complete the configurations, provide a recognizable name for your PHLO and click Save. Your PHLO is now ready.

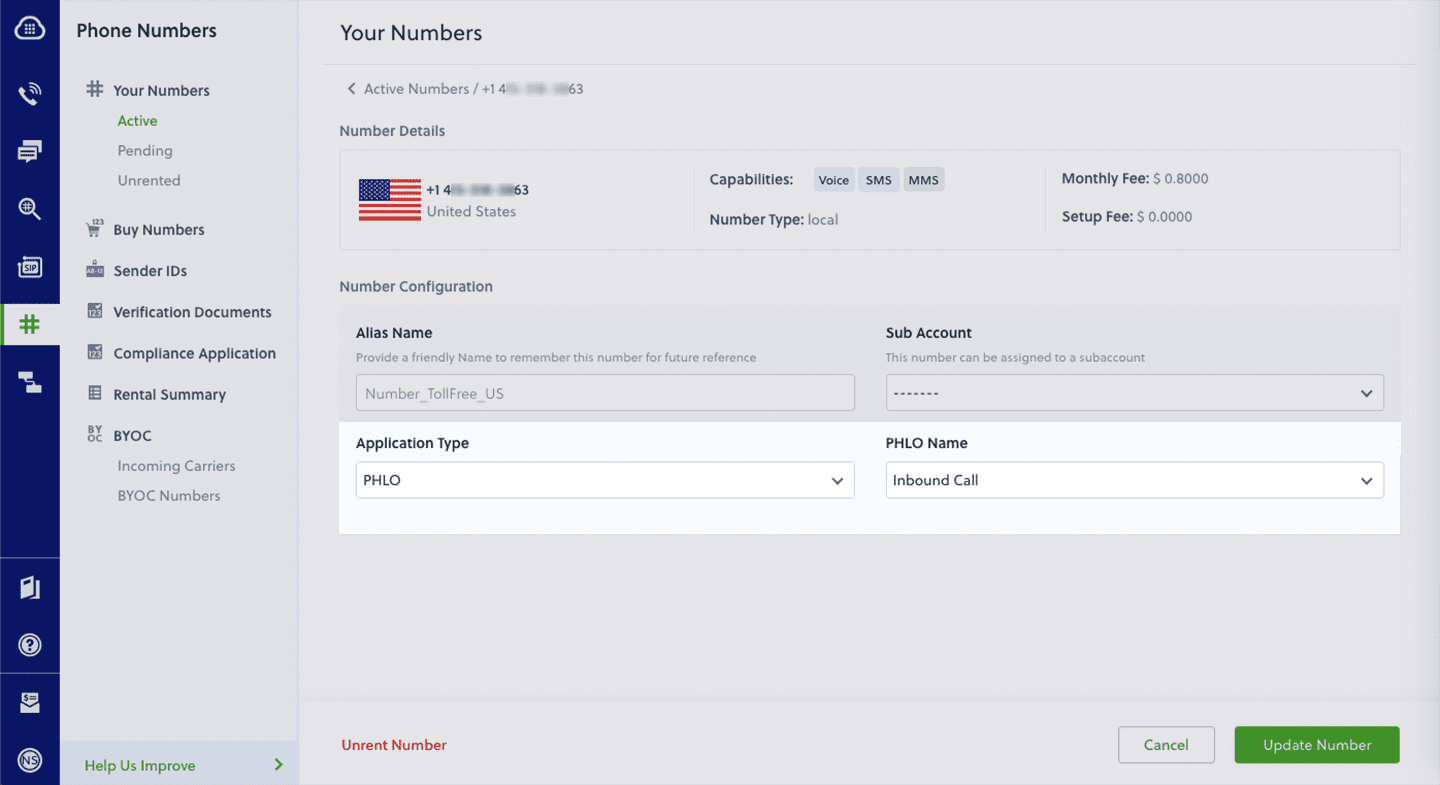

    Assign the PHLO to a Plivo Number for Incoming Calls

    Once you have created and configured your PHLO, assign your PHLO to a Plivo number.

    To assign a PHLO to a number:

    1. Log in to your Plivo Console
    2. On the Product Navigation bar, click Phone Numbers.
    3. On the Numbers page, under Your Numbers, click the phone number you wish to use for the PHLO.
    4. In the Number Configuration window, select PHLO from the Application Type list.
    5. From the PHLO Name list, select the PHLO you wish to use with the phone number, and then click Update Number.

    Assign PHLO to a Plivo Number

    If you have not purchased a phone number yet, you can buy a phone number(s) by referring to the instructions available here.

    Test and Validate

    You can now make a call to your Plivo phone number to receive an incoming call and see how the inbound call is handled using PHLO.

    For more information about creating a PHLO app, see the PHLO User Guide.
    For information on components and their variables, see the PHLO Components Library.

    Forward an Incoming call

    To forward an incoming call, you can create and deploy a PHLO with a few clicks on the PHLO canvas.

    Prerequisites

    1. Create a Plivo account (if you don’t have one already): Sign up with your work email address and complete the phone verification step using your mobile number.
    2. Buy a Plivo number: You must have a voice-enabled Plivo phone number to receive incoming calls. Purchase numbers from the Numbers section of your Plivo Console. It is also possible to purchase numbers using the Numbers API.
    3. PHLO Application: When you receive a call on a Plivo voice-enabled number, you can control the call flow by associating a PHLO application to that Plivo phone number. Plivo will fetch the PHLO associated with the number and expect valid instructions via PHLO to handle the call.

    Create the PHLO

    You can create a PHLO by referring to the below instructions to forward an incoming call:

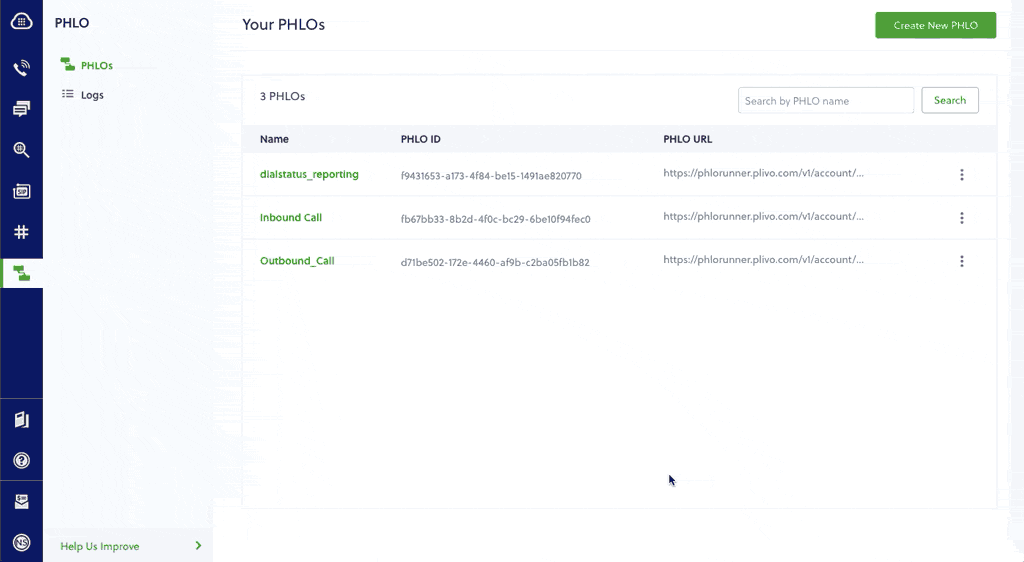

    Create a PHLO to receive incoming call

    • On the side navigation bar, click PHLO. The PHLO page will appear and display your existing PHLOs, if any exist. If this is your first PHLO, then the PHLO page will be empty.
    • Click Create New PHLO to build a new PHLO.
    • In the Choose your use-case window, click Build my own. The PHLO canvas will appear with the Start node.
      Note: The Start node is the starting point of any PHLO. You can choose between the four available trigger states of the start node; Incoming SMS, Incoming Call, and API Request. For this PHLO, we will use the API Request trigger state.
    • From the list of components on the left-hand side, drag and drop the Call Forward component onto the canvas. This will add a Call Forward node onto the canvas.
    • Connect the Start node with the Call Forward node, using the Incoming Call trigger state.
    • Configure the Call Forward node with the phone number to which you want to forward the call. For example, in this case, “+14157778889”.
    • Once you have configured the node, click Validate to save the configurations.
    • After you complete the configurations, provide a recognizable name for your PHLO and click Save. Your PHLO is now ready.

    Assign the PHLO to a Plivo Number to Forward Incoming Calls

    Once you have created and configured your PHLO, assign your PHLO to a Plivo number.

    To assign a PHLO to a number:

    1. Log in to your Plivo Console
    2. On the Product Navigation bar, click Phone Numbers.
    3. On the Numbers page, under Your Numbers, click the phone number you wish to use for the PHLO.
    4. In the Number Configuration window, select PHLO from the Application Type list.
    5. From the PHLO Name list, select the PHLO you wish to use with the phone number, and then click Update Number.

    Assign PHLO to a Plivo Number

    If you have not purchased a phone number yet, you can buy a phone number(s) by referring to the instructions available here.

    Test and Validate

    You can now make a call to your Plivo phone number and see how the inbound call is forwarded to the phone number specified in the PHLO.

    For more information about creating a PHLO app, see the PHLO User Guide.
    For information on components and their variables, see the PHLO Components Library.

    Install PHP, Laravel and the Plivo PHP Server SDK

    You must set up and install PHP, Laravel and Plivo’s PHP SDK to make your first call. Here’s how.

    Install PHP

    Operating SystemInstructions
    macOSYou can install PHP using the official installer. You can also install it from here.
    LinuxTo install PHP on Linux you can find the instructions here.
    WindowsTo install PHP on Windows you can use the official installer.

    Install Composer

    Composer is a dependency manager for PHP that is used in all modern PHP frameworks, such as Symfony and Laravel. We highly recommend using Composer as the package manager for your web project.

    1. Download the latest version of Composer.
    2. Run the following command in Terminal in order to run the composer:

       $ php ~/Downloads/composer.phar --version


      Note: PHAR (PHP archive) is an archive format for PHP that can be run on the command line

    3. Run the following command to make it executable:

       $ cp ~/Downloads/composer.phar /usr/local/bin/composer
       $ sudo chmod +x /usr/local/bin/composer
       $ Make sure you move the file to bin directory.

    4. To check if the path has /usr/local/bin, use

       $ echo $PATH


      If the path is different, use the following command to update the $PATH:

       $ export PATH = $PATH:/usr/local/bin
       $ source ~/.bash_profile


      Note: If your PATH doesn’t include /usr/local/bin directory, we recommend adding it so that you can access it globally.

    5. You can also check the version of Composer by running the following command:

       $ composer --version.


    1. Run the following command:

       $ curl -sS https://getcomposer.org/installer | php

    2. Run the following command to make the composer.phar file as executable:

       $ chmod +x composer.phar


      Note: PHAR (PHP archive) is an archive format for PHP that can be run on the command line

    3. Run the following command to make Composer globally available for all system users:

       $ mv composer.phar /usr/local/bin/composer


    1. Download and run the Windows Installer for Composer.

      Note: Make sure to allow Windows Installer for Composer to make changes to your php.ini file.

    2. If you have any terminal windows open, close all instances and open a fresh terminal instance.
    3. Run the Composer command.

       $ composer -V


    Install Laravel & Create a Laravel Project

    • Use the below command to install Laravel:

      $ composer require laravel/installer


    As we have Laravel and its dependencies installed, we can use them to create a new Laravel project. As the initial step, using Laravel we can auto-generate code in the Laravel folder structure.

    • Change the directory to our project directory in the command line:

      $ cd mylaravelapp

    • Use the below command to start your Laravel project:

      $ composer create-project laravel/laravel quickstart --prefer-dist

    • To install the stable release, run the following command in the project directory:

      $ composer require plivo/plivo-php


    This will create a quickstart directory with the necessary folders & files for development.

    Install Plivo

    • To install a specific release, run the following command in the project directory:

      $ composer require plivo/plivo-php:4.15.0

    • Alternatively, you can download this source and run

      $ composer install


    This generates the autoload files, which you can include using the following line in your PHP source code to start using the SDK.

    <?php
    require 'vendor/autoload.php'


    Make your first Outbound Call

    Prerequisites

    This section will guide you through how to use Plivo APIs to make voice calls from your application. First, let’s make sure you meet these prerequisites before we dive into the code.

    • Plivo Auth Id and Auth Token: You will find your Plivo Auth Id and Auth Token on the home screen of your Plivo Console. Click here to sign-up for a Plivo account if you haven’t already!

      Find Your Auth Credentials on Plivo Console

    • Plivo Phone Number(Optional): Purchase numbers from the Numbers section of your Plivo Console and use the same as the caller ID for the outbound call. This number will also help you receive incoming calls as you must have a voice-enabled Plivo phone number to do the same. Please note that you can also purchase numbers using the Numbers API.

      Buy a New Plivo Number

    • Answer Url: When a call is answered by the destination_number, you can control the call flow with the help of the answer_url set in the API request. Plivo will invoke the answer_url specified as soon as the call is answered and expect a valid XML response with instructions to handle the call. For example, you can use https://s3.amazonaws.com/static.plivo.com/answer.xml as answer_url to test your first outgoing call. The XML response of this is:

      <Response>
      <Speak>Congratulations! You've made your first outbound call!</Speak>
      </Response>


      As you can tell, the XML above holds instructions to say ‘Congratulations! You’ve made your first outbound call!’ to the callee. You can find the entire list of Plivo XML verbs and their details in the XML Reference section of the website here.

    Create a Laravel Controller

    Change the directory to our newly created project directory, i.e, quickstart directory and run the below command to create a Laravel controller for outbound call.

    $ php artisan make:controller VoiceController


    This will generate a controller named VoiceController in the app/http/controllers/ directory. Now, You have to open the app/http/controllers/voiceController.php file and add the following code:

    Code

    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22

    <?php
    namespace App\Http\Controllers;
    require '../../vendor/autoload.php';
    use Plivo\RestClient;
    use Illuminate\Http\Request;

    class VoiceController extends Controller
    {
        // To make your first outbound call
        public function makeCall()
        {
            $auth_id    = "Your_AuthID";
            $auth_token = "Your_AuthToken";
            $client     = new RestClient($auth_id, $auth_token);
            $response = $client->calls->create('+14151234567',
            ['+14157654321'],
            'http://s3.amazonaws.com/static.plivo.com/answer.xml',
            'GET');
            header('Content-Type: application/json');
            echo json_encode($response);
        }
    }

    Note:
    • Replace the placeholders auth_id & auth_token with your credentials from yourPlivo Console.
    • We recommend that you store your credentials in the auth_id & auth_token environment variables, so as to avoid the possibility of accidentally committing them to source control. If you do this, you can initialize the client with no arguments and it will automatically fetch them from the environment variables
    • You can use $_ENV or putenv/getenv function to store environment variables and fetch them while initializing the client.
    • Replace the placeholder +14151234567 with the Phone number which you have purchased and +14157654321 with the phone number you will be making calls to.
    • Both +14151234567 and +14157654321 should be in E.164 format

    Add a Route

    Now, to add a route for the outbound function in the VoiceController class, open the routes/web.php file and add the below line at the end of the file:

    Route::match(['get', 'post'], '/makecall', 'VoiceController@makeCall');

    Note:
  • If you are using Laravel 8 then you need to use the fully qualified Class name for your Controllers. For example:
    Route::match(['get', 'post'], '/makecall', 'App\Http\Controllers\VoiceController@makeCall');
  • We have added the route of the app to the “except” array to disable CSRF verification - app/Http/Middleware/VerifyCsrfToken.php
  • Test & Validate

    Now the VoiceController is ready for your first outbound call, you can use the below command to initiate your first outbound using Laravel and Plivo PHP SDK.

    $ php artisan serve


    Your local development server will be started and you can test the laravel app for outbound calls via the URL http://127.0.0.1:8000/makecall/.

    Note: If you are using a Plivo Trial account for this example, you can only make calls to phone numbers that have been verified with Plivo. Phone numbers can be verified at the Sandbox Numbers page.

    Receive Your First Inbound Call

    Prerequisites

    In addition to having at least one voice-enabled Plivo phone number that is needed to receive incoming calls (as was mentioned earlier), you need the following:

    Answer URL & Callback URLs

    When a call is received on a Plivo voice-enabled number, you can control the call flow by declaring an answer URL for your Plivo application associated with that Plivo phone number. Plivo will invoke the answer URL specified and expect a valid XML response to handle the call.

    Notice how the concept of Answer URLs applies to both outbound API calls as well as incoming calls to your Plivo numbers. In the outbound API call example above, we specified the answer URL along with the make call API request, whereas in the case of incoming calls to Plivo numbers, the answer URL is specified in the Plivo application associated with the phone number.

    In addition to requests to the answer URL, Plivo initiates HTTP requests to your application server through the course of a call based on the specific XML elements in your answer XML. Such requests can be broadly classified into two categories:

    Action URL requests: XML instructions to carry forward the call are expected in response to these requests. These requests are typically invoked at the end of an XML element’s execution. For example: when an IVR input is received from the caller during a GetInput XML execution.

    Callback URL requests: No XML instructions are expected in response to these requests. Such requests serve as webhooks to notify your application server of important events through the course of an XML element’s execution. For example: when a conference participant is muted or unmuted.

    Web Server

    To be able to host Answer and Callback URLs and to be able to provide valid XMLs and accept notifications on these URLs respectively, you need to host a webserver at your end.

    Set up Laravel server for Incoming Calls & Callbacks.

    In this section, we’ll walk you through how to set up a Laravel server in under five minutes and start handling incoming calls & callbacks.

    Now, open the app/http/controllers/VoiceController.rb file and add include the following code in the VoiceController class after the makeCall function:

    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26

    <?php

    namespace App\Http\Controllers;
    require '../../vendor/autoload.php';
    use Plivo\RestClient;
    use Plivo\XML\Response;
    use Illuminate\Http\Request;

    class VoiceController extends Controller
    {
        // To make your first outbound call
        public function makeCall()
        {
            .......
        }

        // Speak XML to handle your first incoming call
        public function receiveCall()
        {
            $response = new Response();
            $speak_body = "Hello, you just received your first call";
            $response->addSpeak($speak_body);
            Header('Content-type: text/xml');
            echo $response->toXML();
        }
    }


    Add a Route

    Now, you need to add a route for the receiveCall function in VoiceController class, open the routes/web.php file and add the below line after the makecall route:

    Route::match(['get', 'post'], '/makecall', 'VoiceController@makeCall');
    Route::match(['get', 'post'], '/receivecall', 'VoiceController@receiveCall');


    Test & Validate

    Now the VoiceController is ready for your first inbound call, you can use the below command to receive your first inbound using Laravel and Plivo PHP SDK.

    $ php artisan serve


    Your local development server will be started and you can test the laravel app for inbound calls via the URL http://127.0.0.1:8000/receivecall/.

    Exposing your local server to the internet

    To receive incoming calls and to handle callbacks, your local server should be able to connect with the Plivo API service. Ngrok is a tunneling software used to expose a web server running on your local machine to the internet. Using Ngrok you can set webhooks that can talk to the Plivo server.

    ngrok block diagram

    You can download and install ngrok from here. Follow the detailed configuration instructions to get started.

    Run ngrok on the port which currently hosts your application. For example, if your port number is 8000, run the following command:

    $ ./ngrok http 8000


    This will give you a UI with links that look like ngrok.io/* which you can use to access your local server using the public network.

    Sample ngrok CLI

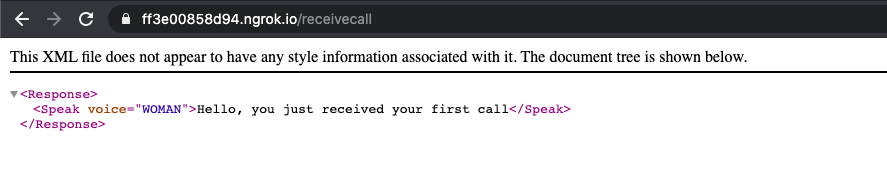

    You can check the app in action on https://ff3e00858d94.ngrok.io/receivecall and check the XML response as shown below:

    sample XML

    Create a Plivo Application

    1. Create an Application by visiting the Application Page and clicking on New Application. You can also use Plivo’s Application API.
    2. Give your application a name. Let’s call it Receive_call. Enter your server URL (e.g. http://example.com/receivecall/) in the Answer URL field and set the method as POST. See our Application API docs to learn how to modify your application through our APIs.
    3. Click on Create to save your application.

    Create Application

    Assign a Plivo number to your app

    1. Navigate to the Numbers page and select the phone number you want to use for this app.
    2. Select Receive Call (name of the app) from the Plivo App dropdown list.
    3. Click on Update to save.

    Assign Phone Number to Receive Call App

    Test and validate

    Make a call to your Plivo number using a regular mobile phone. Plivo will send a request to your Answer URL requesting for a valid XML response and process the call. Meanwhile, the parameters listed in the XML Request - call status documentation will also be sent to your server.

    Forward an Incoming call

    To forward an incoming call, you need to use Dial XML.

    • You should set up the dial XML document in your server
    • URL of the dial XML in your server has to be set up as the answer_url of the app assigned to the Plivo number.
    • During an incoming call to your Plivo number, Plivo will send a request to the answer_url expecting a valid XML to process the incoming call.
    • As the response would be a dial XML, the call will be forwarded to the number defined in the XML response.
    Note: The phone number must be a Plivo phone number that is voice-enabled. You can purchase a Plivo number from the Buy Numbers tab on your Plivo Console and filter the phone numbers by selecting voice in the features option to buy voice-enabled numbers.

    Update the Laravel Controller

    Now, open the app/http/controllers/VoiceController.php file and add include the following code in the VoiceController class after the receiveCall function:

    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    36
    37
    38

    <?php

    namespace App\Http\Controllers;
    require '../../vendor/autoload.php';
    use Plivo\RestClient;
    use Plivo\XML\Response;
    use Illuminate\Http\Request;

    class VoiceController extends Controller
    {
        // To make your first outbound call
        public function makeCall()
        {
            ........
        }

        // Speak XML to handle you first incoming call
        public function receiveCall()
        {
            ..........
        }

        // Dial XML to forward the incoming call
        public function forwardCall()
        {
            $response = new Response();
            $params = array(
                'action' => "https://www.foo.com/dial_status/",
                'method' => "POST",
                'redirect' => "true"
            );
            $dial = $response->addDial($params);
            $number = "14153336666";  // call will be forwarded to this number
            $dial->addNumber($number);
            Header('Content-type: text/xml');
            echo $response->toXML();
        }
    }


    Add a Route

    Now, you need to add a route for the inbound function in VoiceController class, open the routes/web.php file and add the below line after the inbound route:

    Route::match(['get', 'post'], '/makecall', 'VoiceController@makeCall');
    Route::match(['get', 'post'], '/receivecall', 'VoiceController@receiveCall');
    Route::match(['get', 'post'], '/forwardcall', 'VoiceController@forwardCall');


    Test & Validate

    Now the VoiceController is ready to forward the incoming calls to your Plivo number, you can use the below command to start the Laravel server to forward incoming calls and to handle callbacks.

    $ php artisan serve


    Your local development server will be started and you can test the rails app for outbound calls via the URL http://127.0.0.1:8000/forwardcall/.

    Note: Create an application in the Plivo console with your Server URL in the answer_url field and assign the app to a Plivo number.

    Make a call to your Plivo number using a regular mobile phone. Plivo will send a request to your Answer URL requesting for a valid XML response and process the call. Once Plivo receives the dial XML response, the call will be forwarded to the number defined in the XML. Meanwhile, the parameters listed in the XML Request - call status documentation will also be sent to your server.
