Set Up a Ruby Dev Environment for Voice Calls

    This guide shows how to set up a development environment in five minutes to trigger API requests and start serving Plivo XML to control your call flow. It also shows how to test your code using tunneling software to expose the local dev server to the public internet.

    Install Ruby and Rails

    To get started, install Ruby, Rails, and Plivo’s Ruby SDK. You can check whether you have Ruby installed by running ruby --version in a terminal window. If you don’t have it, macOS and Linux users can install it using homebrew, and Windows users can use RubyInstaller.

    To install Rails, run

    gem install rails


    Auto-generate code for a new Rails project with the command

    rails new plivotest


    This command creates a directory named plivotest with the necessary folders and files for development.

    Install the Plivo Ruby SDK

    Add the Plivo Ruby SDK by editing the Gemfile and adding the line

    gem 'plivo', '~> 4.16.0'


    To install the Plivo-Ruby gem into the bundle, run

    bundle install


    Create a Rails controller to trigger an API request

    Now you can create a file in the project directory and execute code to trigger any Plivo API. Change to the newly created plivotest project directory and run this command to create a Rails controller for outbound calls.

    rails generate controller Plivo voice


    This command generates a controller named plivo_controller in the app/controllers/ directory and a view in app/views/plivo. You can delete the view — we don’t need it.

    rm app/views/plivo/voice.html.erb


    Now, edit the app/controllers/plivo_controller.rb file and add this code:

    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15

    include Plivo
    include Plivo::Exceptions

    class PlivoController < ApplicationController
     def outbound
       api = RestClient.new("<auth_id>","<auth_token>")
       response = api.calls.create(
         '<Caller_ID>',
         ['<Destination_Number>'],
         'http://s3.amazonaws.com/static.plivo.com/answer.xml'
       )
       puts response
       render json: response.to_s
     end
    end

    Note:
    • Replace the placeholders <auth_id> and <auth_token> with your authentication credentials, which you can find on the overview page of the Plivo console.
    • We recommend that you store your credentials in the auth_id and auth_token environment variables to avoid the possibility of accidentally committing them to source control. If you do this, you can initialize the client with no arguments and it will automatically fetch the values from the environment variables.
    • Replace the placeholder <Caller_ID> with a phone number you’ve purchased, and <Destination_Number> with the phone number you’ll be calling. Both phone numbers should be in E.164 format
    • <Destination_Number> can also be a SIP endpoint. If you’re calling a SIP endpoint, the <Destination_Number> placeholder should be a valid SIP URI. Example: sip:john1234@phone.plivo.com

    Add a route

    To add a route for the outbound function in the PlivoController class, open the config/routes.rb file and change the line:

    get 'plivo/voice'


    to

    get 'plivo/outbound'


    Now plivo_controller is ready. Use this command to initiate an outbound call.

    rails server


    Your local development server will be started and you can test the application for outbound calls via the URL http://localhost:3000/plivo/outbound/.

    You can follow the same approach to trigger other API requests. Refer to our detailed API reference to see all the API requests available on the Voice API platform.

    Serve an XML document and manage callbacks

    When you receive a call on a Plivo voice-enabled number, you can control the call flow by declaring an Answer URL for the Plivo application associated with that phone number. Plivo will invoke the Answer URL specified and expect a valid XML response to handle the call.

    Note: You can use Answer URLs with both outbound API calls and inbound calls. In the outbound API call example above, we specified the Answer URL along with the Make Call API request; for incoming calls, you’d specify the Answer URL in the Plivo application associated with the phone number.

    In addition to requests to the Answer URL, Plivo initiates other HTTP requests to your application server based on specific XML elements in your Answer XML document. Such requests are broadly classified into two categories:

    Action URL requests: These requests are typically invoked at the end of an XML element’s execution, and the server expects XML instructions to carry forward the call in response to these requests. This happens, for example, when a caller provides Touch-Tone input during GetInput XML execution.

    Callback URL requests: These requests serve as webhooks to pass the application server information about events through the course of an XML element’s execution, such as when a conference participant is muted or unmuted. No XML instructions are expected in response to these requests.

    Set up a Rails server to serve XML and manage callbacks

    Here’s how to set up a Rails server to serve XML documents and manage callbacks.

    Use this code snippet to start a local server.

    1
    2
    3
    4
    5
    6
    7
    8

    def inbound
       response = Response.new
       speak_body = 'Hello, you just received your first call'
       response.addSpeak(speak_body)

       xml = Plivo::PlivoXML.new(response)
       render xml: xml.to_xml
     end


    Add a route

    To add a route for the inbound function in the PlivoController class, open the config/routes.rb file and add this line after the outbound route:

    get 'plivo/inbound'


    Now plivo_controller is ready. Use this command to receive an inbound call.

    $rails server


    Your local development server will be started and you can test the application for inbound calls via the URL http://localhost:3000/plivo/inbound/.

    Ngrok setup

    To serve XML documents, your local server must connect with Plivo API services. For that, we recommend using ngrok, which exposes local servers running behind NATs and firewalls to the public internet over secure tunnels. Using ngrok, you can set webhooks that can talk to the Plivo server.

    ngrok block diagram

    Note: Before you start the ngrok service, whitelist ngrok by adding it to the config.hosts list in the config/environments/development.rb file with this command. You’ll face a Blocked host error if you fail to add it.
    # Whitelist ngrok domain
    config.hosts << /[a-z0-9]+\.ngrok\.io/


    Run ngrok on the port that hosts the application on which you want to receive messages (3000 in this case):

    ./ngrok http 3000


    This will start the ngrok server on your local server.

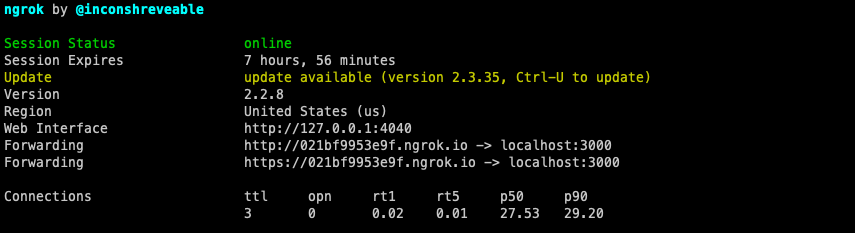

    ngrok CLI

    You should be able to see your basic server application in action at https://<nrgok_URL>/receive_call/ and check the XML response:

    Sample XML

    You can follow the same approach to serve other XML documents to manage other call flows. Refer to our detailed XML reference to see all the XML elements available on the Voice API platform.
