Pass Custom Headers

Overview

SIP headers (also called SIP fields) are part of every HTTP request made by an outbound call. They can convey message attributes to ensure that information packets travel along the correct path between devices on different networks.SIP headers are categorized into four main types: record-route headers, route headers, via headers, and contact headers. They always have the format

<header_name>:<value>

Plivo SIP headers are always prefixed with X-PH-. Only characters [A-Z], [a-z], and [0-9] are allowed as part of either a SIP header name or value to ensure that you can encode them in a URL. You can use multiple header fields by entering them as a comma-separated list:

head1=val1,head2=val2,head3=val3,...,headn=valn

You can use custom SIP headers to pass information (such as customer ID or product information) from a front-end application to a back-end application and vice versa.If you’re using a SIP endpoint and you’ve configured it to send custom SIP headers, Plivo will send the SIP headers with your HTTP request.You can pass custom SIP headers either by using our PHLO visual workflow builder or our APIs and XML documents. Follow the instructions in one of the tabs below.

Using XML

Here’s how to use Plivo APIs and XML to make an outbound call with custom SIP headers.

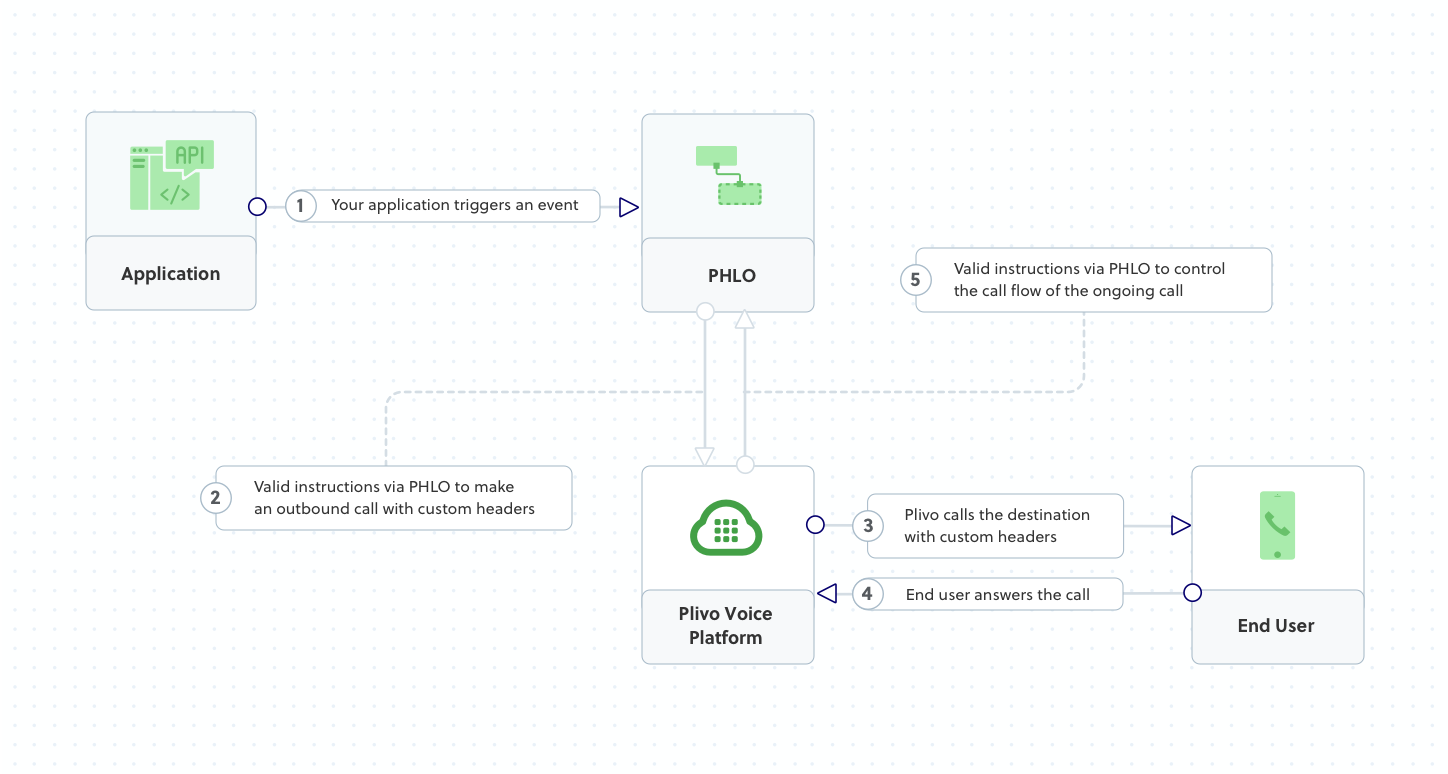

How it works

Plivo requests an answer URL when the call is answered (step 4) and expects the file at that address to hold a valid XML response from the application with instructions on how to handle the call. To see how this works, you can use https://s3.amazonaws.com/static.plivo.com/answer.xml as an answer URL to test your first outgoing call. The file contains this XML code:

<Response>
<Speak>Congratulations! You've made your first outbound call!</Speak>
</Response>

This code instructs Plivo to say, “Congratulations! You’ve made your first outbound call!” to the call recipient. You can find the entire list of valid Plivo XML verbs in our XML Reference documentation.

Prerequisites

To get started, you need a Plivo account — sign up with your work email address if you don’t have one already. If this is your first time using Plivo APIs, follow our instructions to set up a Node.js development environment.

Create the outbound call application with custom SIP headers

Create a file called Makecall.js and paste into it this code.

var plivo = require('plivo');

(function main() {
    'use strict';

   // If auth id and auth token are not specified, Plivo will fetch them from the environment variables.
    var client = new plivo.Client("<auth_id>","<auth_token>");
    client.calls.create(
        "<caller_id>", // from
        "<destination_number>", // to
        "https://s3.amazonaws.com/static.plivo.com/answer.xml", // answer url
        {
            answerMethod: "GET",
            sipHeaders: "Test=Sample"
        },
    ).then(function (response) {
        console.log(response);
    }, function (err) {
        console.error(err);
    });
})();

Replace the auth placeholders with your authentication credentials from the Plivo console. Replace the phone number placeholders with actual (for example, +12025551234). Destination_number may also be a SIP endpoint, in which case the destination_number placeholder must be a valid SIP URI — for example, sip:john1234@phone.plivo.com.

Note: We recommend that you store your authentication credentials in the auth_id and auth_token environment variables, to avoid the possibility of accidentally committing them to source control. If you do this, you can initialize the client with no arguments and it will automatically fetch them from the environment variables. You can use process.env to store environment variables and fetch them when initializing the client.

Test

Save the file and run it.

$ node Makecall.js

Sample response

(201, {
        u'message': u'call fired',
        u'request_uuid': u'85b1d45d-bc12-47f5-89c7-ae4a2c5d5713',
        u'api_id': u'ad0e27a8-9008-11e4-b932-22000ac50fac'
    }
)

The SIP header can be seen as a query parameter in the answer_url

/answer.xml?Direction=outbound&From=1111111111&ALegUUID=5260e820-958c-11e4-b6bf-498d468c930b&BillRate=0.00300&
To=sip%3Aabcd150105094929%40phone.plivo.com&`X-PH-Test=Sample`&CallUUID=5260e820-958c-11e4-b6bf-498d468c930b&ALegRequestUUID=2202d0ab-a890-4199-8582-e7a2615cb23b&
RequestUUID=2202d0ab-a890-4199-8582-e7a2615cb23b&SIP-H-To=%3Csip%3Aabcd150105094929%40phone.plivo.com%3E%3Btag%3D6U9J4.uVHI7KyEKSgD8vrPnAKQoR2QXc&
CallStatus=in-progress&Event=StartApp

Overview

<header_name>:<value>

head1=val1,head2=val2,head3=val3,...,headn=valn

Using XML

Here’s how to use Plivo APIs and XML to make an outbound call with custom SIP headers.

How it works

<Response>
<Speak>Congratulations! You've made your first outbound call!</Speak>
</Response>

Prerequisites

Create the outbound call application with custom SIP headers

Create a file called make_call.rb and paste into it this code.

require 'rubygems'
require 'plivo'

include Plivo
include Plivo::Exceptions

api = RestClient.new("<auth_id>","<auth_token>")

begin
  response = api.calls.create(
    '<caller_id>',
    ['<destination_number>'],
    'https://s3.amazonaws.com/static.plivo.com/answer.xml',
    sip_headers: 'Test=Sample',)
  puts response
rescue PlivoRESTError => e
  puts 'Exception: ' + e.message
end

Replace the auth placeholders with your authentication credentials from the Plivo console. Replace the phone number placeholders with actual phone numbers in E.164 format (for example, +12025551234). Destination_number may also be a SIP endpoint, in which case the destination_number placeholder must be a valid SIP URI — for example, sip:john1234@phone.plivo.com.

Note: We recommend that you store your authentication credentials in the auth_id and auth_token environment variables, to avoid the possibility of accidentally committing them to source control. If you do this, you can initialize the client with no arguments and it will automatically fetch them from the environment variables. You can use ENV to store environment variables and fetch them when initializing the client.

Test

Save the file and run it.

$ ruby make_call.rb

Sample response

(201, {
        u'message': u'call fired',
        u'request_uuid': u'85b1d45d-bc12-47f5-89c7-ae4a2c5d5713',
        u'api_id': u'ad0e27a8-9008-11e4-b932-22000ac50fac'
    }
)

The SIP header can be seen as a query parameter in the answer_url

/answer.xml?Direction=outbound&From=1111111111&ALegUUID=5260e820-958c-11e4-b6bf-498d468c930b&BillRate=0.00300&
To=sip%3Aabcd150105094929%40phone.plivo.com&`X-PH-Test=Sample`&CallUUID=5260e820-958c-11e4-b6bf-498d468c930b&ALegRequestUUID=2202d0ab-a890-4199-8582-e7a2615cb23b&
RequestUUID=2202d0ab-a890-4199-8582-e7a2615cb23b&SIP-H-To=%3Csip%3Aabcd150105094929%40phone.plivo.com%3E%3Btag%3D6U9J4.uVHI7KyEKSgD8vrPnAKQoR2QXc&
CallStatus=in-progress&Event=StartApp

Overview

<header_name>:<value>

head1=val1,head2=val2,head3=val3,...,headn=valn

Using XML

Here’s how to use Plivo APIs and XML to make an outbound call with custom SIP headers.

How it works

<Response>
<Speak>Congratulations! You've made your first outbound call!</Speak>
</Response>

Prerequisites

Create the outbound call application with custom SIP headers

Create a file called make_call.py and paste into it this code.

import plivo

client = plivo.RestClient('<auth_id>','<auth_token>')
response = client.calls.create(
    from_='<caller_id>',
    to_='<destination_number>',
    answer_url='https://s3.amazonaws.com/static.plivo.com/answer.xml',
    answer_method='GET',
    sip_headers='Test=Sample')
print(response)

Note: We recommend that you store your authentication credentials in the auth_id and auth_token environment variables, to avoid the possibility of accidentally committing them to source control. If you do this, you can initialize the client with no arguments and it will automatically fetch them from the environment variables. You can use os module(os.environ) to store environment variables and fetch them when initializing the client.

Test

Save the file and run it.

$ python make_call.py

Sample response

(201, {
        u'message': u'call fired',
        u'request_uuid': u'85b1d45d-bc12-47f5-89c7-ae4a2c5d5713',
        u'api_id': u'ad0e27a8-9008-11e4-b932-22000ac50fac'
    }
)

The SIP header can be seen as a query parameter in the answer_url

/answer.xml?Direction=outbound&From=1111111111&ALegUUID=5260e820-958c-11e4-b6bf-498d468c930b&BillRate=0.00300&
To=sip%3Aabcd150105094929%40phone.plivo.com&`X-PH-Test=Sample`&CallUUID=5260e820-958c-11e4-b6bf-498d468c930b&ALegRequestUUID=2202d0ab-a890-4199-8582-e7a2615cb23b&
RequestUUID=2202d0ab-a890-4199-8582-e7a2615cb23b&SIP-H-To=%3Csip%3Aabcd150105094929%40phone.plivo.com%3E%3Btag%3D6U9J4.uVHI7KyEKSgD8vrPnAKQoR2QXc&
CallStatus=in-progress&Event=StartApp

Overview

<header_name>:<value>

head1=val1,head2=val2,head3=val3,...,headn=valn

Using XML

Here’s how to use Plivo APIs and XML to make an outbound call with custom SIP headers.

How it works

<Response>
<Speak>Congratulations! You've made your first outbound call!</Speak>
</Response>

Prerequisites

Create the outbound call application with custom SIP headers

Create a file called MakeCall.php and paste into it this code:

<?php
require 'vendor/autoload.php';
use Plivo\RestClient;
use Plivo\Exceptions\PlivoRestException;
$client = new RestClient("<auth_id>","<auth_token>");
try {
    $response = $client->calls->create(
        '<caller_id>',
        ['<destination_number>'],
        'https://s3.amazonaws.com/static.plivo.com/answer.xml',
        [
            'ring_url' => 'https://WWW.RING.URL',
            'sip_headers' => 'Test=Sample',
            'answer_method' => 'GET'
        ]
    );
    print_r($response);
}
catch (PlivoRestException $ex) {
    print_r($ex);
}

Note: We recommend that you store your authentication credentials in the auth_id and auth_token environment variables, to avoid the possibility of accidentally committing them to source control. If you do this, you can initialize the client with no arguments and it will automatically fetch them from the environment variables. You can use the $_ENV or putenv/getenv functions to store environment variables and fetch them when initializing the client.

Test

Save the file and run it.

$ php MakeCall.php

Sample response

(201, {
        u'message': u'call fired',
        u'request_uuid': u'85b1d45d-bc12-47f5-89c7-ae4a2c5d5713',
        u'api_id': u'ad0e27a8-9008-11e4-b932-22000ac50fac'
    }
)

The SIP header can be seen as a query parameter in the answer_url

/answer.xml?Direction=outbound&From=1111111111&ALegUUID=5260e820-958c-11e4-b6bf-498d468c930b&BillRate=0.00300&
To=sip%3Aabcd150105094929%40phone.plivo.com&`X-PH-Test=Sample`&CallUUID=5260e820-958c-11e4-b6bf-498d468c930b&ALegRequestUUID=2202d0ab-a890-4199-8582-e7a2615cb23b&
RequestUUID=2202d0ab-a890-4199-8582-e7a2615cb23b&SIP-H-To=%3Csip%3Aabcd150105094929%40phone.plivo.com%3E%3Btag%3D6U9J4.uVHI7KyEKSgD8vrPnAKQoR2QXc&
CallStatus=in-progress&Event=StartApp

Overview

<header_name>:<value>

head1=val1,head2=val2,head3=val3,...,headn=valn

Using XML

Here’s how to use Plivo APIs and XML to make an outbound call with custom SIP headers.

How it works

<Response>
<Speak>Congratulations! You've made your first outbound call!</Speak>
</Response>

Prerequisites

Create the outbound call application with custom SIP headers

Open the file in the CS project called Program.cs and paste into it this code.

 using System;
 using System.Collections.Generic;
 using Plivo;
 using Plivo.Exception;

namespace PlivoExamples
{
    internal class Program
    {
        public static void Main(string[] args)
        {
            var api = new PlivoApi("<auth_id>","<auth_token>");
            try
            {
                var response = api.Call.Create(
                    to:new List<String>{"<destination_number>"},
                    from:"<caller_id>",
                    answerMethod:"GET",
                    answerUrl:"https://s3.amazonaws.com/static.plivo.com/answer.xml",
                    sipHeaders: "customer=johndoe"
                );
                Console.WriteLine(response);
            }
            catch (PlivoRestException e)
            {
                Console.WriteLine("Exception: " + e.Message);
            }
        }
    }
}

<a href="https://docs.microsoft.com/en-us/dotnet/api/system.environment.setenvironmentvariable?view=netcore-3.1" rel="nofollow">Environment.SetEnvironmentVariable Method</a>

to store environment variables and fetch them using

<a href="https://docs.microsoft.com/en-us/dotnet/api/system.environment.getenvironmentvariable?view=netcore-3.1" rel="nofollow">Environment.GetEnvironmentVariable Method</a>

when initializing the client.

Test

Save the file and run it.

Sample response

(201, {
        u'message': u'call fired',
        u'request_uuid': u'85b1d45d-bc12-47f5-89c7-ae4a2c5d5713',
        u'api_id': u'ad0e27a8-9008-11e4-b932-22000ac50fac'
    }
)

The SIP header can be seen as a query parameter in the answer_url

/answer.xml?Direction=outbound&From=1111111111&ALegUUID=5260e820-958c-11e4-b6bf-498d468c930b&BillRate=0.00300&
To=sip%3Aabcd150105094929%40phone.plivo.com&`X-PH-Test=Sample`&CallUUID=5260e820-958c-11e4-b6bf-498d468c930b&ALegRequestUUID=2202d0ab-a890-4199-8582-e7a2615cb23b&
RequestUUID=2202d0ab-a890-4199-8582-e7a2615cb23b&SIP-H-To=%3Csip%3Aabcd150105094929%40phone.plivo.com%3E%3Btag%3D6U9J4.uVHI7KyEKSgD8vrPnAKQoR2QXc&
CallStatus=in-progress&Event=StartApp

Overview

<header_name>:<value>

head1=val1,head2=val2,head3=val3,...,headn=valn

Using XML

Here’s how to use Plivo APIs and XML to make an outbound call with custom SIP headers.

How it works

<Response>
<Speak>Congratulations! You've made your first outbound call!</Speak>
</Response>

Prerequisites

Create the outbound call application with custom SIP headers

Create a Java class in the project called MakeCall and paste into it this code.

package com.plivo.api.samples.call;

import java.io.IOException;
import java.util.Collections;

import com.plivo.api.Plivo;
import com.plivo.api.exceptions.PlivoRestException;
import com.plivo.api.models.call.Call;
import com.plivo.api.models.call.CallCreateResponse;

class CallCreate {
    public static void main(String [] args) {
        Plivo.init("<auth_id>","<auth_token>");
        try {
            CallCreateResponse response = Call.creator("<caller_id>", Collections.singletonList("<destination_number>"), "https://s3.amazonaws.com/static.plivo.com/answer.xml")
                    .answerMethod("GET")
                    .sipHeaders(new HashMap<String, String>() )
                    .create();

            System.out.println(response);
        } catch (PlivoRestException | IOException e) {
            e.printStackTrace();
        }
    }
}

Note: We recommend that you store your authentication credentials in the auth_id and auth_token environment variables, to avoid the possibility of accidentally committing them to source control. If you do this, you can initialize the client with no arguments and it will automatically fetch them from the environment variables. You can use <a rel="nofollow" href="https://docs.oracle.com/javase/tutorial/essential/environment/env.html">System.getenv()</a> to store and retrieve environment variables when initializing the client.

Test

Save the file and run it.

Sample response

(201, {
        u'message': u'call fired',
        u'request_uuid': u'85b1d45d-bc12-47f5-89c7-ae4a2c5d5713',
        u'api_id': u'ad0e27a8-9008-11e4-b932-22000ac50fac'
    }
)

The SIP header can be seen as a query parameter in the answer_url

/answer.xml?Direction=outbound&From=1111111111&ALegUUID=5260e820-958c-11e4-b6bf-498d468c930b&BillRate=0.00300&
To=sip%3Aabcd150105094929%40phone.plivo.com&`X-PH-Test=Sample`&CallUUID=5260e820-958c-11e4-b6bf-498d468c930b&ALegRequestUUID=2202d0ab-a890-4199-8582-e7a2615cb23b&
RequestUUID=2202d0ab-a890-4199-8582-e7a2615cb23b&SIP-H-To=%3Csip%3Aabcd150105094929%40phone.plivo.com%3E%3Btag%3D6U9J4.uVHI7KyEKSgD8vrPnAKQoR2QXc&
CallStatus=in-progress&Event=StartApp

Overview

<header_name>:<value>

head1=val1,head2=val2,head3=val3,...,headn=valn

Using XML

Here’s how to use Plivo APIs and XML to make an outbound call with custom SIP headers.

How it works

<Response>
<Speak>Congratulations! You've made your first outbound call!</Speak>
</Response>

Prerequisites

Create the outbound call application with custom SIP headers

Create a file called MakeCall.go and paste into it this code:

package main

import "fmt"
import "github.com/plivo/plivo-go/v7"

func main() {
	client, err := plivo.NewClient("<auth_id>","<auth_token>", &plivo.ClientOptions{})
	if err != nil {
			fmt.Print("Error", err.Error())
			return
		}
	response, err := client.Calls.Create(
		plivo.CallCreateParams{
			From: "<caller_id>",
			To: "<destination_number>",
			AnswerURL: "https://s3.amazonaws.com/static.plivo.com/answer.xml",
			AnswerMethod: "GET",
			SipHeader: "customer=johndoe"
		},
	)
	if err != nil {
			fmt.Print("Error", err.Error())
			return
		}
	fmt.Printf("Response: %#v\n", response)
}

Note: We recommend that you store your authentication credentials in the auth_id and auth_token environment variables, to avoid the possibility of accidentally committing them to source control. If you do this, you can initialize the client with no arguments and it will automatically fetch them from the environment variables. You can use os.Setenv and os.Getenv functions to store environment variables and fetch them when initializing the client.

Test

Save the file and run it.

go run MakeCall.go

Sample response

(201, {
        u'message': u'call fired',
        u'request_uuid': u'85b1d45d-bc12-47f5-89c7-ae4a2c5d5713',
        u'api_id': u'ad0e27a8-9008-11e4-b932-22000ac50fac'
    }
)

The SIP header can be seen as a query parameter in the answer_url

/answer.xml?Direction=outbound&From=1111111111&ALegUUID=5260e820-958c-11e4-b6bf-498d468c930b&BillRate=0.00300&
To=sip%3Aabcd150105094929%40phone.plivo.com&`X-PH-Test=Sample`&CallUUID=5260e820-958c-11e4-b6bf-498d468c930b&ALegRequestUUID=2202d0ab-a890-4199-8582-e7a2615cb23b&
RequestUUID=2202d0ab-a890-4199-8582-e7a2615cb23b&SIP-H-To=%3Csip%3Aabcd150105094929%40phone.plivo.com%3E%3Btag%3D6U9J4.uVHI7KyEKSgD8vrPnAKQoR2QXc&
CallStatus=in-progress&Event=StartApp

​Overview

​How it works

​Prerequisites

​Create the outbound call application with custom SIP headers

​Test

​Sample response

​Overview

​How it works

​Prerequisites

​Create the outbound call application with custom SIP headers

​Test

​Sample response

​Overview

​How it works

​Prerequisites

​Create the outbound call application with custom SIP headers

​Test

​Sample response

​Overview

​How it works

​Prerequisites

​Create the outbound call application with custom SIP headers

​Test

​Sample response

​Overview

​How it works

​Prerequisites

​Create the outbound call application with custom SIP headers

​Test

​Sample response

​Overview

​How it works

​Prerequisites

​Create the outbound call application with custom SIP headers

​Test

​Sample response

​Overview

​How it works

​Prerequisites

​Create the outbound call application with custom SIP headers

​Test

​Sample response

Overview

How it works

Prerequisites

Create the outbound call application with custom SIP headers

Test

Sample response

Overview

How it works

Prerequisites

Create the outbound call application with custom SIP headers

Test

Sample response

Overview

How it works

Prerequisites

Create the outbound call application with custom SIP headers

Test

Sample response

Overview

How it works

Prerequisites

Create the outbound call application with custom SIP headers

Test

Sample response

Overview

How it works

Prerequisites

Create the outbound call application with custom SIP headers

Test

Sample response

Overview

How it works

Prerequisites

Create the outbound call application with custom SIP headers

Test

Sample response

Overview

How it works

Prerequisites

Create the outbound call application with custom SIP headers

Test

Sample response
