Latest Legacy

    Retrieve a multiparty call

    API Endpoint

    GET https://phlorunner.plivo.com/v1/phlo/{phlo_id}/multi_party_call/{node_id}

    Arguments

    URL Params

    ParamDescription/Allowed Values
    phlo_idRequiredstring

    Unique identifier for the PHLO. PHLO IDs are listed on the PHLO page of the console.

    node_idRequiredstring

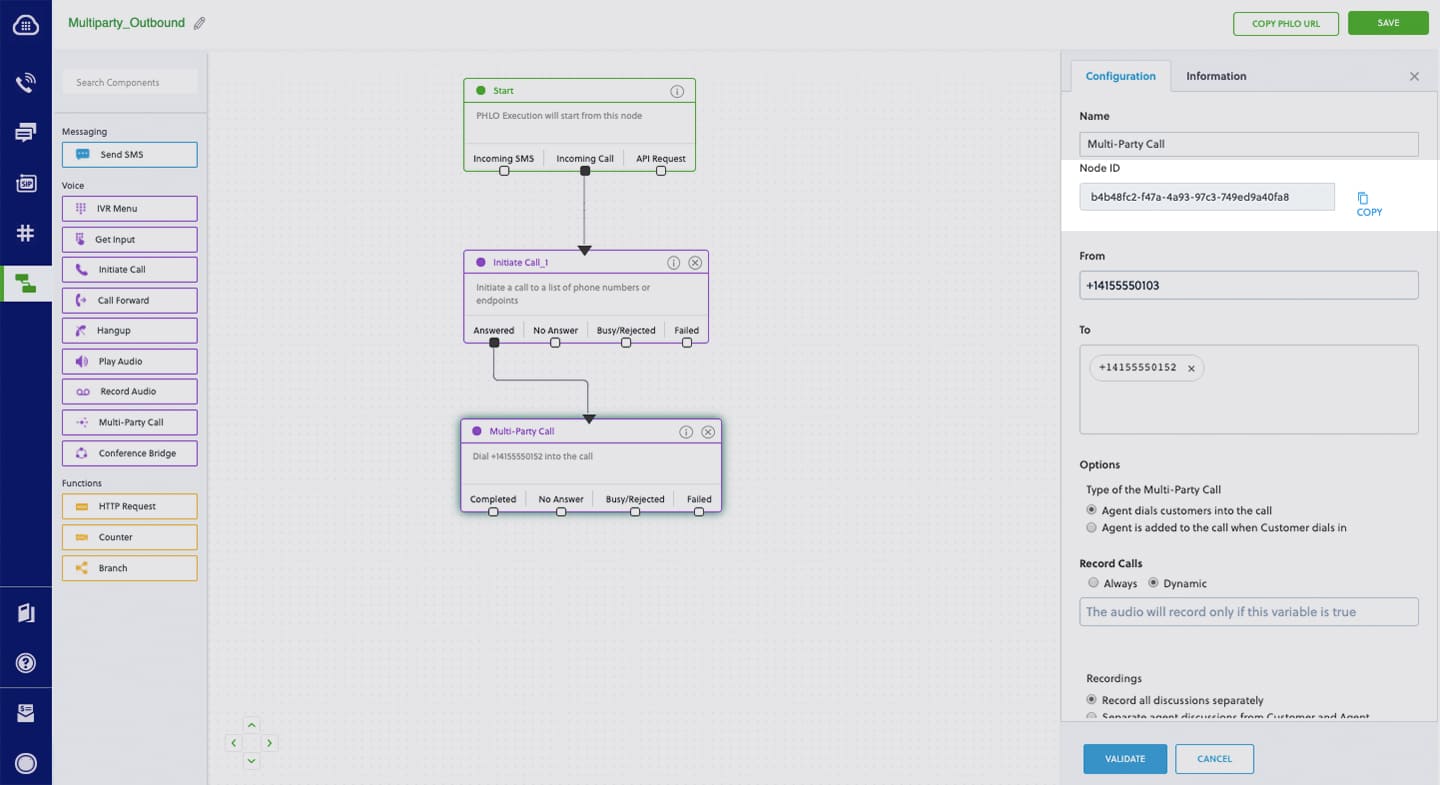

    Unique identifier for the node. Node ID is available in the configuration section of the corresponding multiparty call node in the PHLO. See the screenshot below.

    Node ID

    Payload

    ParamDescription/Allowed Values
    actionRequired

    Value is always call.

    toRequired

    Phone number or SIP endpoint address of the user to add to the multiparty call.

    roleRequired

    Role of the user added to the multiparty call.

    Allowed values: customer, agent
    Defaults to agent.

    trigger_sourceRequired

    Phone number or SIP endpoint address of the user (agent) initiating the trigger.

    Returns

    Returns a MultiPartyCall object.

    Response

    HTTP Status Code: 200

    {
    "api_id": "2163e3fb-d6d0-46fb-a4ce-2d24a6b0b89f",
    "node_id": "b4b48fc2-f47a-4a93-97c3-749ed9a40fa8",
    "phlo_id": "73d6ab01-a2f6-4a84-850f-21e1d46b30bf",
    "name": "Multi-Party Call_1",
    "node_type": "multi_party_call",
    "created_on": "2020-08-01 09:05:11.846982+00:00"
}
