How to Receive a Phone Call in Ruby with Rails and Plivo

How to Receive a Phone Call in Ruby with Rails and Plivo

Making an outbound phone call using the Plivo Voice platform is easy, but communication should be a two-way street. Customers should be able to call you back, and you should answer the calls and address their concerns. This guide shows you how to receive incoming calls on Plivo numbers and manage the call flow once a call reaches the Plivo voice platform. To see how to do this, we’ll build a Ruby on Rails application to receive an incoming call and greet the caller with a text-to-speech (TTS) message.

Prerequisites

Before you get started, you’ll need:

  • A Plivo account — sign up for one for free if you don’t have one already.
  • A voice-enabled Plivo phone number if you want to receive incoming calls. To search for and buy a number, go to Phone Numbers > Buy Numbers on the Plivo console.
  • Rails and Plivo Ruby packages.
  • ngrok — a utility that exposes your local development server to the internet over secure tunnels.

Create a Rails application to receive incoming calls and play a TTS message

First, you need to install Rails if you haven’t installed it already. Use the command gem install rails, or use bundler or RVM to install it. Add a new Rails project with boilerplate code with the command rails new myrailsapp. This will create a myrailsapp directory with the necessary folders and files for development. Then add the Plivo Ruby gem (gem ‘plivo’, ‘~> 4.16.0’) as a dependency in the gemfile and use the command bundle install to install it.

Once you’ve installed Rails and the Plivo Ruby SDK, change to the newly created myrailsapp project directory and run rails generate controller Plivo receive_call to create a Rails controller to handle incoming calls on a Plivo number. To handle an incoming call, you need to return an XML document from the URL configured as the answer URL in the application assigned to the Plivo number. The Ruby SDK can manage the XML document generation, and you can use the Speak XML element to play a text-to-speech message to the caller. Use this code:

class PlivoController < ApplicationController
 def receive_call
   response = Plivo::XML::Response.new
   speak_body = 'Hello, you just received your first call'
   response.addSpeak(speak_body)

   xml = Plivo::XML::PlivoXML.new(response)
   render xml: xml.to_xml
 end
end

Test the code locally

To run the code on the rails server, use the command $ rails server. You should see your basic server application in action on http://127.0.0.1:3000/plivo/receive_call/.

Expose the local server to the internet using ngrok

Once you see the application working locally, the next step is to connect the application to the internet to return the XML document to process the incoming call. For that, we recommend using ngrok, which exposes local servers behind NATs and firewalls to the public internet over secure tunnels.

Install ngrok, but before you start the ngrok service, whitelist ngrok by adding it to the config.hosts list in the config/environments/development.rb file with this command. You’ll face a Blocked host error if you fail to add it.

# whitelist ngrok domain
config.hosts << /[a-z0-9]+\.ngrok\.io/

Now run ngrok on the command line, specifying the port that hosts the application on which you want to receive messages (3000 in this case, as our local Rails application runs there):

$ ./ngrok http 3000

Ngrok will display a forwarding link that you can use as a webhook to access your local server over the public network.

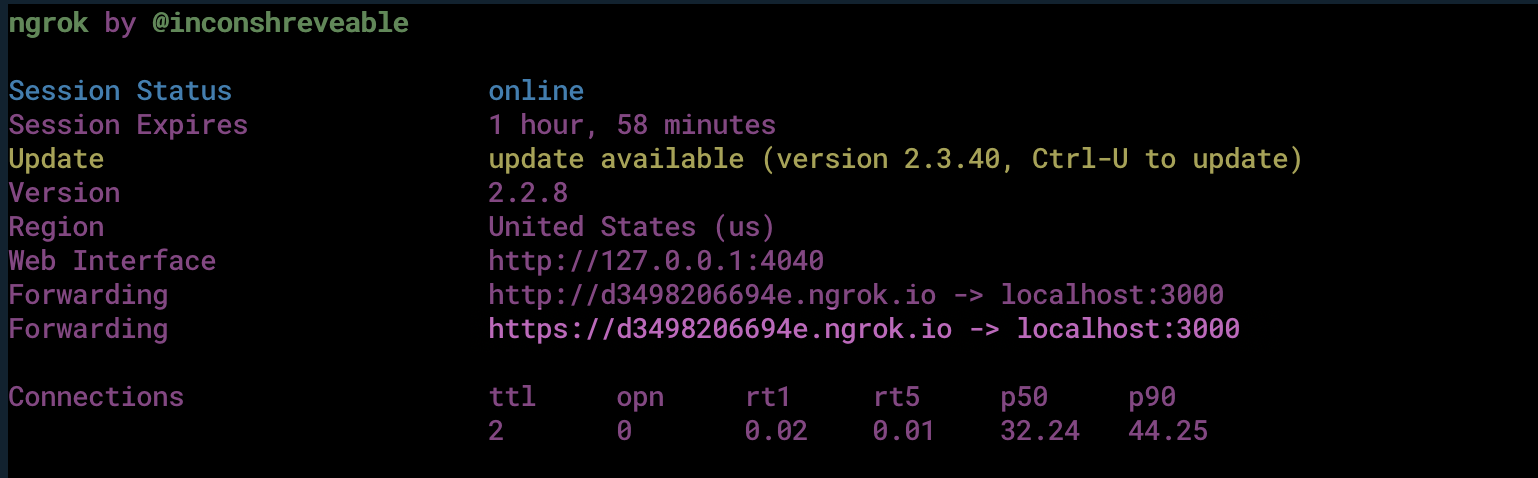

Ngrok CLI

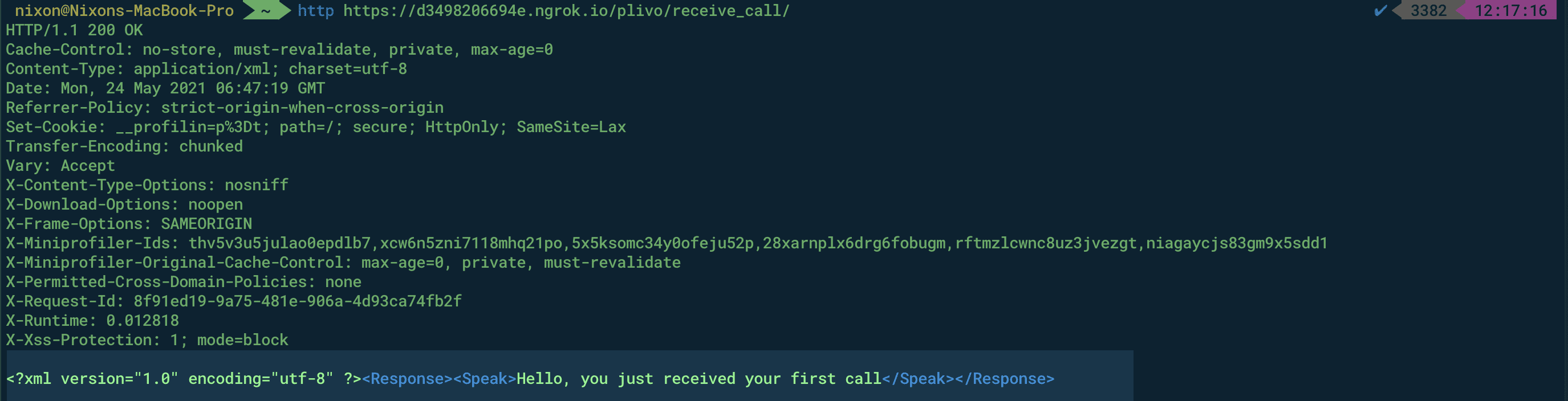

Test the link by opening the ngrok URL (https://d3498206694e.ngrok.io/plivo/receive_call/) in a browser. We used HTTPie to check the XML response from the ngrok URL.

XML document with Speak XML element

Connect the Rails application to a Plivo number

The final step is to configure the application as a Plivo voice application and assign it to a Plivo number on which you want to receive incoming calls.

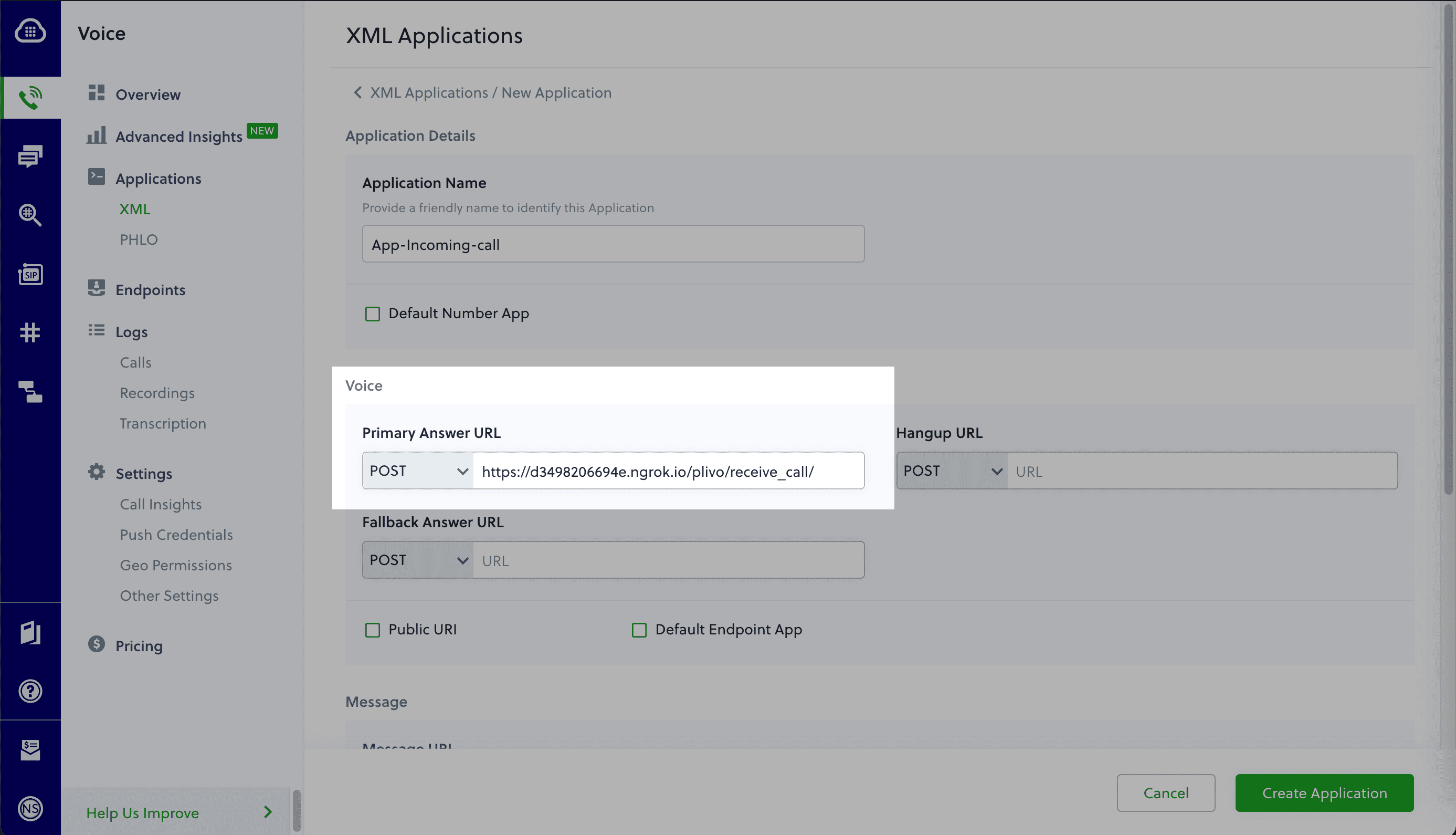

Go to the Plivo console and navigate to Voice > Applications > XML, then click on the Add New Application button in the upper right.

Provide a friendly name for the application — we used “App-Incoming-call” — and configure the ngrok URL https://d3498206694e.ngrok.io/plivo/receive_call/ as the Answer URL. Select the HTTP verb as POST, then click Create Application.

Create Plivo App to handle incoming calls

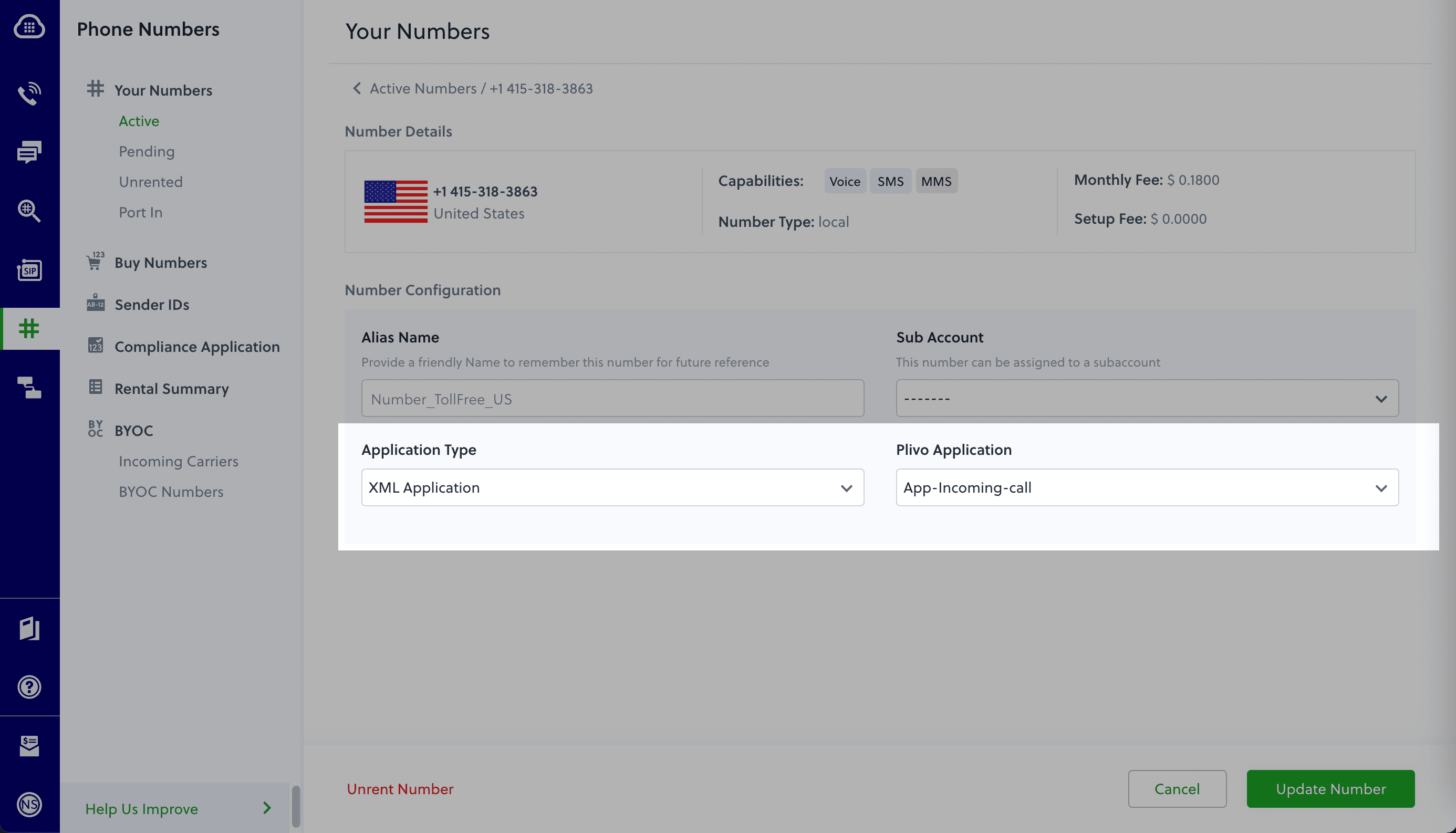

Now go to Phone Numbers > Your Numbers and click on the number to which you want to assign the application. From the Plivo Application drop-down, choose the voice application you just created. Finally, click Update Number.

Assign the Plivo App to a Plivo Number

Test the application

Make a phone call to the Plivo number you selected. You should see that the Rails application automatically greets the caller with the text-to-speech message configured in the app.

And that’s how simple it is to receive an incoming call on a Plivo number and handle it using XML documents using Plivo’s Ruby SDK and a Rails application. You can implement other use cases on the Plivo Voice platform, such as phone system IVR, call forwarding, and number masking, as your business requires.

Haven’t tried Plivo yet? Getting started is easy and only takes five minutes. Sign up today.
